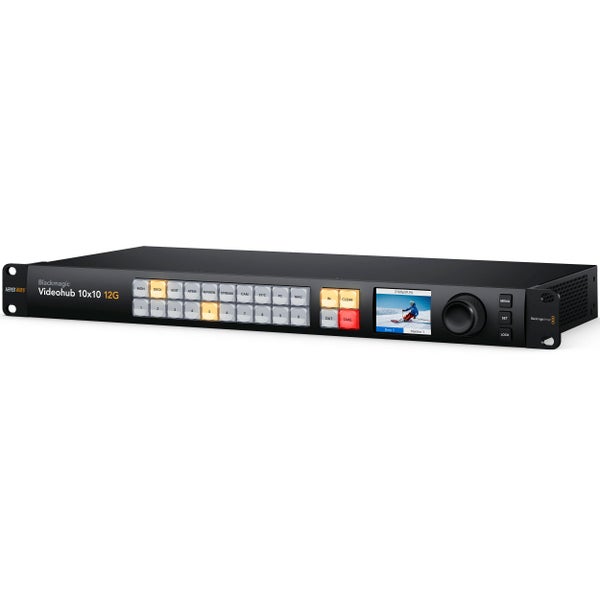

Blackmagic Design Videohub 10x10 12G grille de commutation vidéo

Caractéristiques

• SDI 12G video mixer
• SDI-video inputs: 10
• SDI-video outputs: 10
• SDI rates: DVB-ASI, 270 MB, 1.5G, 3G, 6G, 12G
• SDI re-clocking on all SDI outputs
• reference inputs: Tri-Sync or Black Burst
• reference outputs: reference terminating loop output
• Ethernet: support 10/100/1000 BASTE-T
• computer interface: USB-C
• guidelines:
  • SD video standards: 525i59.94 NTSC, 625i50 PAL
  • HD video standards: 720p50, 720p59.94, 720p60
    1080i50, 1080i59.94, 1080i60
    1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
    1080PsF23,98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
  • 2K video standards: 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
    2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
  • Ultra HD video standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
  • 4K video standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
  • SDI compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B
    SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-10, ITUR BT.656 and ITUR BT.601
  • SDI audio sampling: TV-standard sample rate of 48 kHz and 24-bit
  • SDI video sampling: 4:2:2, 4:4:4
  • SDI colour precision: 10, 12-bit, RGB 4:4:4 in all HD and 2K modes, Ultra HD modes up to 2160p30 and 4K modes up to 4Kp30 DCI, 10-bit YUV 4:2:2 in all modes
  • SDI colour space: REC 601, REC 709, REC 2020
  • SDI auto switching: switches automatically between 270Mb SDSDI, 1.5G HDSDI, 3G level A and level B HD-SDI, 6G HDSDI, 12GSDI and DVBASI on all inputs so that every input can be used play back a different television standard
  • SDI metadata support: video payload identification additional data according to SMPTE 352M
• controls:
  • 24 buttons for local control of Videohub with 3 buttons and a search knob for manu control. 2.2" colour screen
  • external control panel: including Blackmagic Videohub software control panel for Mac and Windows. Supports Videohub Smart Control Pro and Videohub Master Control Pro hardware panels. Included Blackmagic Videohub SDK and Ethernet Videohub Control Protocol.
• software, software control: router-control, free for Windows and Mac
• supported operating systems:
  • Mac 12.0 Monterey
  • Mac 13.0 Ventura or later
  • Windows 10, 64-bit
  • Windows 11
• displays: built-in 2.2"LCD screen for video and menu settings
• max. power consumption: 20.8W
• dimensions: 482 x 44.2 x 236.14mm
• weight: 3 kg
• included:
  • router control software
  • internal software updater application
